JX-300 Industrial Meat Cutting Machine for Slicing Strips and Dicing

The JX-300 Industrial Meat Cutting Machine is a compact, multifunctional meat processor designed for slicing, strip cutting and dicing fresh meat and poultry. By selecting the appropriate removable knife set, one machine can prepare multiple finished-product formats while reducing repetitive manual cutting.

With a capacity of up to 800 kg/h, the JX-300 meat cutter is suitable for meat processing plants, central kitchens, supermarkets, butcher shops, restaurant chains and prepared-food production facilities that require flexible production without occupying excessive floor space.

Key Features

• Multifunctional Meat Cutting: Supports meat slicing, strip cutting and dicing with the appropriate knife assembly and processing setup.

• High Production Capacity: Processes up to 800 kg/h, depending on the raw material and required finished size.

• Removable Knife Set: The complete blade assembly can be removed for cleaning, maintenance or replacement.

• Configurable Cutting Size: Different knife sets are available to meet various slicing, strip cutting and dicing requirements.

• Compact Machine Design: The small footprint is suitable for central kitchens, supermarkets and production areas with limited space.

• Stainless Steel Construction: The durable machine body is corrosion-resistant and convenient for routine sanitation.

• Simple Operating Controls: Single-switch operation and an emergency-stop button support straightforward daily use.

• Optional Feeding Configuration: An additional feeding mechanism can be selected for continuous production or processing-line integration.

Video of the Equipment in Operation

Watch the JX-300 Industrial Meat Cutting Machine process fresh meat into uniform slices, strips and cubes using different knife configurations.

Machine Overview

The JX-300 uses a motor-driven cutting assembly to process prepared ingredients through the 80 × 280 mm feed opening. The selected knife configuration determines whether the finished product is cut into slices, strips or cubes.

Its detachable blade group simplifies specification changes and cleaning. The compact stainless steel body and movable casters make the machine convenient for both independent operation and flexible positioning within a meat processing line.

Suitable Products and Applications

The JX-300 can process properly prepared fresh or lightly chilled boneless beef, pork, lamb, mutton, chicken, duck, turkey, fish fillets, air-dried meat, selected animal offal and suitable soft cartilage.

Depending on the knife configuration and condition of the raw material, it can produce beef slices, pork slices, chicken strips, duck strips, shredded meat, diced beef, diced pork, diced lamb and other standardized meat portions.

The machine may also process selected non-meat ingredients with a suitable texture, such as kelp, firm peppers and stacked tofu sheets. Customers processing special ingredients should provide samples or videos for a cutting test before ordering.

Typical users include meat processing factories, poultry plants, seafood processors, central kitchens, catering suppliers, restaurant chains, hot-pot ingredient manufacturers, frozen-food factories, supermarkets and prepared-meal producers.

Production Applications: Beef Slices, Pork Slices, Chicken Strips, Duck Strips, Shredded Meat, Beef Cubes, Pork Cubes, Lamb Cubes and Ready-Meal Ingredients

How the JX-300 Produces Slices, Strips and Cubes

The finished cutting format depends on the installed blade group and processing method. A slicing knife set divides the prepared meat into uniform slices, while a strip-cutting configuration produces consistent meat strips for stir-fries, barbecue, hot pot and ready meals.

For dicing applications, the machine uses a corresponding cutting configuration to divide prepared meat into standardized cubes. The appropriate blade spacing should be selected according to the raw-material dimensions and required finished size.

Because the complete knife group is removable, processors can prepare different blade assemblies for separate products. This allows the same JX-300 machine to support several production requirements while reducing the need to purchase individual machines for every cutting format.

Technical Specifications

Technical data is for reference. Actual production capacity depends on the raw-material type, temperature, dimensions, texture and required cutting specification. Voltage, blade spacing and final machine configuration should be confirmed before ordering.

Product Details

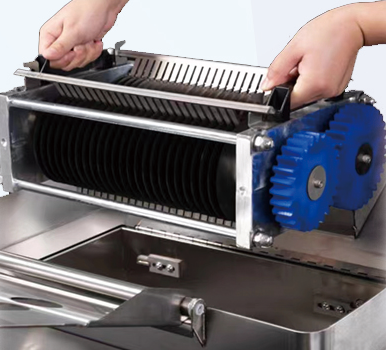

• Detachable Cutting Assembly: The removable knife group makes blade replacement, cleaning and specification changes more convenient.

• Stainless Steel Blades: Sharp and durable cutting components support smooth processing and consistent finished sizes.

• Stainless Steel Machine Body: The robust construction is suitable for frequent commercial and industrial use.

• Large Feed Opening: The 80 × 280 mm inlet accommodates properly prepared meat portions for efficient batch processing.

• Simple Control Switch: The centralized control system supports convenient single-operator use.

• Emergency-Stop Button: The clearly positioned emergency control allows the operator to stop the machine quickly when necessary.

• Powerful Motor System: The 2.2 kW motor provides stable power for continuous meat cutting.

• Mobile Casters: The compact machine can be repositioned easily according to the production layout.

Why Choose the JX-300 Industrial Meat Cutting Machine?

The JX-300 combines three common meat processing requirements—slicing, strip cutting and dicing—in one compact machine. It is particularly suitable for businesses that process several finished-product formats but have limited workshop space.

Its removable knife assembly makes it easier to change cutting specifications and maintain the machine. With a capacity of up to 800 kg/h, the JX-300 can support both daily batch processing and continuous commercial production.

For growing food businesses, the optional feeding configuration also provides flexibility for future production-line integration. Buyers can configure the machine according to their raw material, finished size and required output instead of relying on a fixed general-purpose setup.

FAQS

1. What products can the JX-300 meat cutting machine process?

It is suitable for properly prepared fresh or lightly chilled boneless beef, pork, lamb, chicken, duck, turkey, fish fillets, selected offal, air-dried meat and suitable soft cartilage. Selected firm non-meat ingredients may also be processed after testing.

2. Can one machine produce slices, strips and cubes?

Yes. The finished format depends on the installed knife set and processing configuration. Different blade assemblies can be prepared for slicing, strip cutting and dicing requirements.

3. Can the cutting size be customized?

Yes. Blade spacing and cutting specifications can be configured according to the required finished-product size. Customers should provide the raw-material dimensions and target cutting result before ordering.

4. Can the JX-300 process frozen meat or bones?

The machine is primarily designed for fresh or lightly chilled meat. It is not intended for hard-frozen meat blocks or hard bones. Soft cartilage and selected small poultry products should be confirmed through a sample cutting test.

5. What is the production capacity of the machine?

The rated capacity is up to 800 kg/h. Actual output varies according to the product type, temperature, feed dimensions, operator speed and cutting specification.

6. Is the knife group easy to remove and clean?

Yes. The complete knife assembly is detachable for cleaning, inspection and replacement. Always disconnect the power before removing the blade set and follow the operating instructions when handling sharp components.
