Automatic Frozen Meat Slicer and Portion Cutter | JX-25

The JX-25 Automatic Frozen Meat Slicer and Portion Cutter is an industrial meat processing machine designed to cut frozen or tempered meat blocks into uniform slices and portions. Its dynamic feeding system, adjustable slice thickness and intelligent product gripper help stabilize the raw material during cutting and improve finished-product consistency.

This automatic frozen meat cutting machine is suitable for processing beef, pork, lamb, bacon, ribs, fish and other properly prepared meat products at temperatures from approximately 0°C to −8°C. It is designed for meat factories, central kitchens, frozen-food manufacturers, supermarket processing centers and prepared-food production lines.

Key Features

• Automatic Frozen Meat Cutting: Continuously cuts frozen or tempered meat blocks into uniform slices and portions.

• Adjustable Slice Thickness: Cutting thickness can be set from 1 to 30 mm for different product requirements.

• High-Speed Production: Delivers up to 210 cuts per minute, depending on product condition and selected thickness.

• Intelligent Product Gripper: Holds the meat securely during feeding to reduce slipping and improve cutting consistency.

• Dynamic Feeding System: Advances the raw material accurately toward the blade to improve yield and reduce end-piece waste.

• Large Loading Capacity: Accommodates products up to 600 mm long with a maximum cross-section of approximately 250 × 210 mm.

• Inclined Loading Chamber: The 30° feeding bin assists stable product positioning and continuous forward movement.

• Stainless Steel Construction: The durable machine body is suitable for intensive commercial meat processing and routine sanitation.

Video of the Equipment in Operation

Watch the JX-25 Automatic Frozen Meat Slicer process frozen meat blocks, bacon and ribs into consistent slices at adjustable thicknesses.

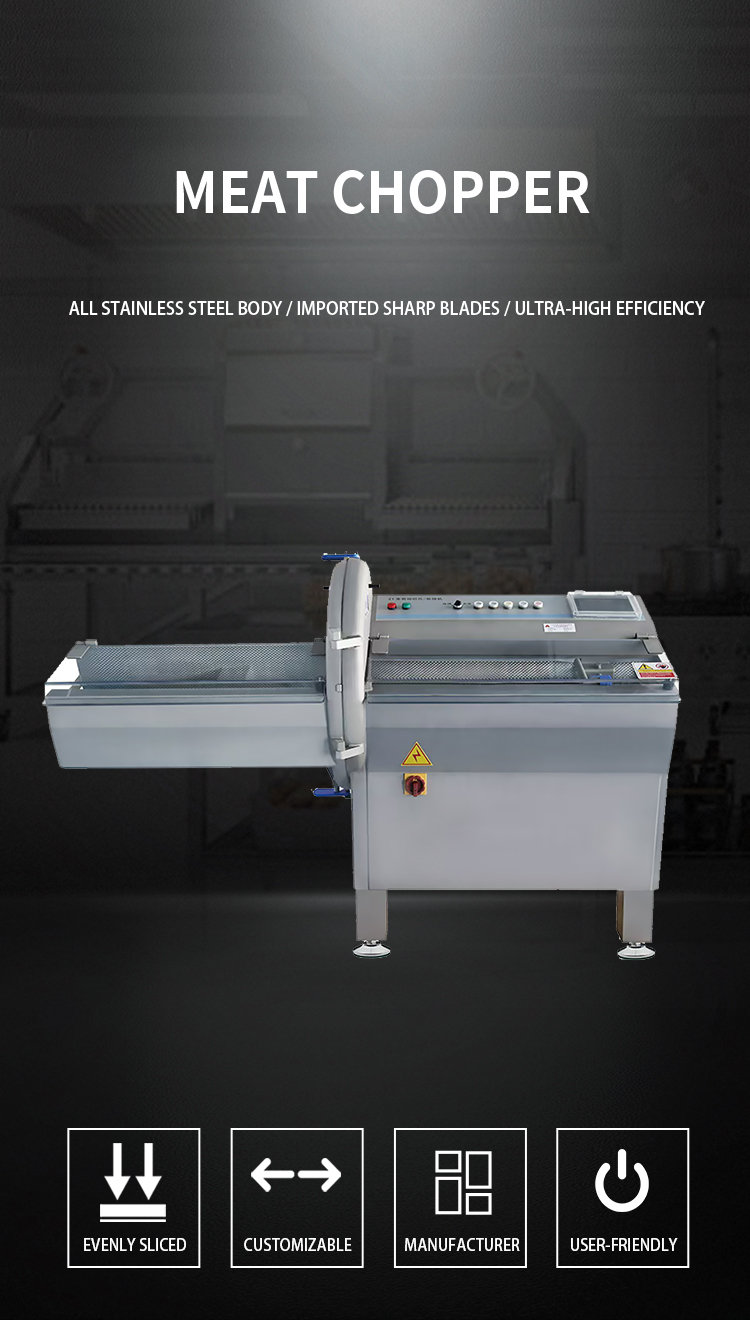

Machine Overview

The operator loads prepared frozen or tempered meat into the inclined feeding chamber. The product gripper secures the raw material while the dynamic feeding system advances it toward the cutting blade according to the selected thickness.

Each cutting cycle produces a controlled slice or portion, which is transferred away through the discharge conveyor. By changing the thickness setting, processors can prepare thin meat slices, steaks, chops or larger portions using the same machine.

Suitable Products and Applications

The JX-25 frozen meat slicer can process properly sized frozen or tempered beef, pork, lamb, mutton, bacon, pork belly, boneless meat blocks, ribs, pork chops and selected fish products.

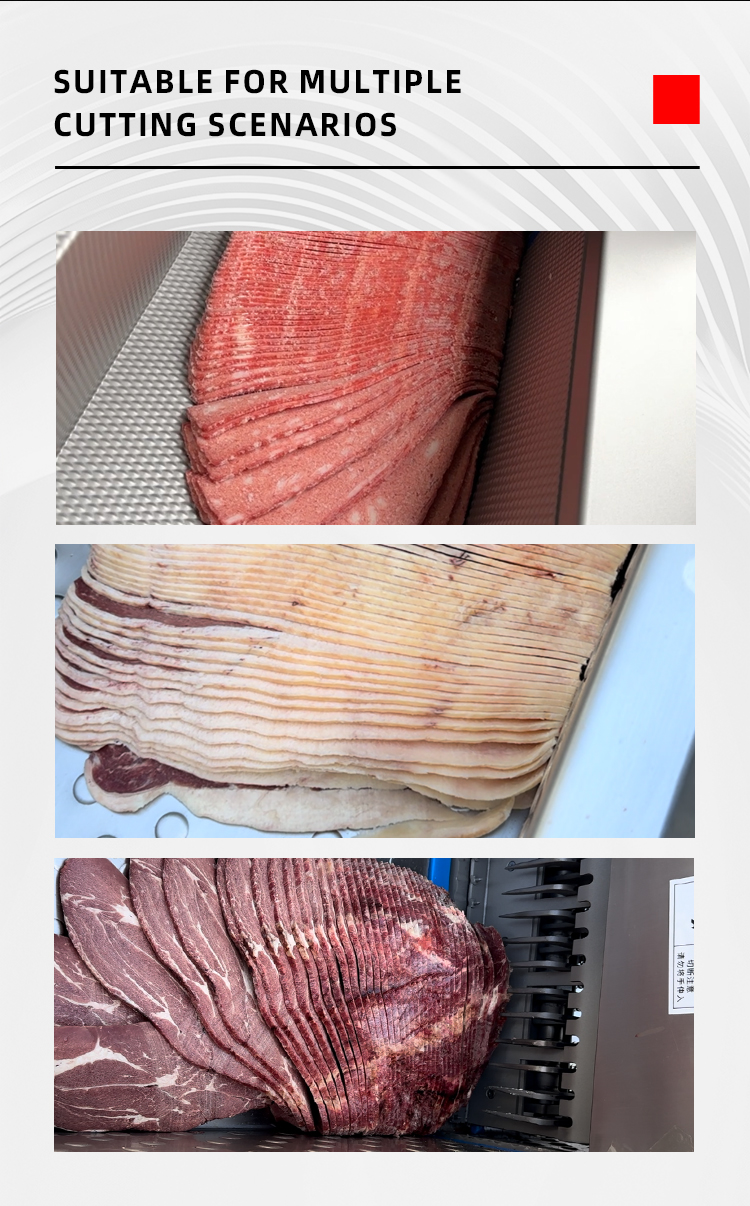

Depending on raw-material hardness, bone structure and thickness settings, it can prepare beef slices, pork slices, lamb portions, bacon slices, pork belly slices, rib sections, fish slices, hot-pot ingredients and standardized meat portions for retail packaging.

The machine is especially useful for businesses that require repeatable slice thickness and continuous batch production. Typical users include slaughterhouses, meat processing factories, frozen-food manufacturers, central kitchens, catering suppliers, supermarket meat departments, restaurant supply companies and ready-meal producers.

Production Applications: Frozen Beef Slices, Pork Slices, Lamb Portions, Bacon Slices, Pork Belly, Rib Sections, Fish Slices, Meat Steaks and Portion-Controlled Meat Products

Consistent Portion Cutting with Dynamic Feeding

The JX-25 uses a product gripper to hold the meat securely inside the feeding chamber. This helps prevent the block from sliding or rotating as it moves toward the blade, improving slice consistency across the production batch.

The dynamic feeding mechanism advances the raw material by a controlled distance for each cutting cycle. Operators can set a thickness between 1 and 30 mm according to the required product. Consistent thickness also helps manufacturers standardize cooking time, packaging quantity and finished-product presentation.

The 30° inclined loading chamber uses the product’s position and the feeding mechanism to maintain stable movement toward the cutting area. After cutting, the slices are transferred through the conveyor for collection, packaging or further processing.

Technical Specifications

 Technical data is for reference. Actual cutting speed and finished-product quality depend on the meat type, temperature, bone structure, raw-material dimensions and selected slice thickness. Products with large or exceptionally dense bones should be tested before ordering. Voltage and machine configuration can be customized according to local requirements.

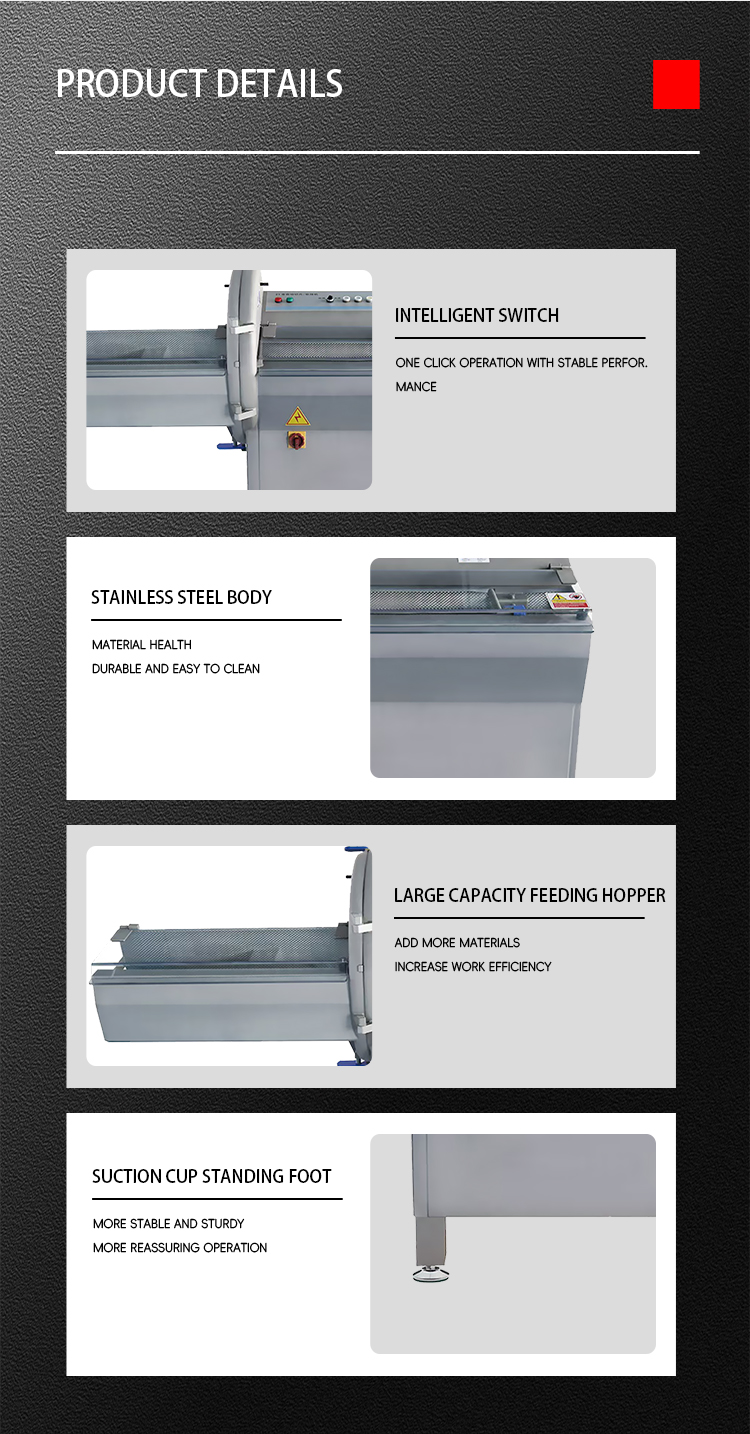

Product Details

• Intelligent Control Panel: The centralized interface allows operators to control feeding and cutting parameters conveniently.

• Automatic Product Gripper: Secures meat blocks during processing to reduce movement and irregular cutting.

• Dynamic Feeding Mechanism: Advances the product steadily according to the selected portion thickness.

• Stainless Steel Machine Body: The robust structure is durable and suitable for frequent industrial use.

• Large Feeding Chamber: Accepts meat products up to 600 mm long and approximately 250 × 210 mm in cross-section.

• 30° Inclined Loading Design: Helps keep the raw material correctly positioned during automatic feeding.

• Discharge Conveyor: Transfers finished slices away from the cutting area for convenient collection or line integration.

• Adjustable Supporting Feet: Provide stable machine positioning during high-speed cutting operations.

Why Choose the JX-25 Automatic Frozen Meat Slicer?

The JX-25 combines automatic feeding, high-speed slicing and adjustable portion thickness in one industrial system. It helps meat processors replace repetitive manual chopping while improving slice consistency and production efficiency.

Its ability to process products between approximately 0°C and −8°C makes it suitable for tempered and frozen meat that requires stable cutting. The 1–30 mm thickness range also enables one machine to produce thin slices, steaks, chops and larger meat portions for different markets.

For manufacturers focused on portion consistency, the intelligent gripper and dynamic feeding system provide greater control over product movement. This helps improve raw-material utilization and supports more standardized packaging and downstream processing.

FAQS

1. What products can the JX-25 frozen meat slicer process?

It can process properly prepared frozen or tempered beef, pork, lamb, mutton, bacon, pork belly, boneless meat blocks, ribs, pork chops and selected fish products.

2. What is the recommended meat temperature?

The recommended processing range is approximately 0°C to −8°C. Actual suitability depends on the meat type, dimensions, fat content and bone structure. Extremely hard, deeply frozen products should be tempered before cutting.

3. Can the cutting thickness be adjusted?

Yes. Slice thickness can be set from 1 to 30 mm, allowing the machine to prepare thin meat slices, steaks, chops and larger portions.

4. Can the machine cut ribs and bone-in meat?

The JX-25 can process suitable ribs, chops and selected bone-in products. However, products containing large or very dense bones should be evaluated through a sample cutting test before ordering.

5. What is the production speed?

The machine can perform up to approximately 210 cuts per minute. Actual output depends on the selected thickness, product length, temperature and material condition.

6. Does the machine control the exact weight of every portion?

The JX-25 portions meat primarily by the selected slice thickness rather than by weighing every slice. Portion weight can vary when the raw material has an irregular shape or uneven cross-section.
