High-Speed Vegetable Shredding Machine

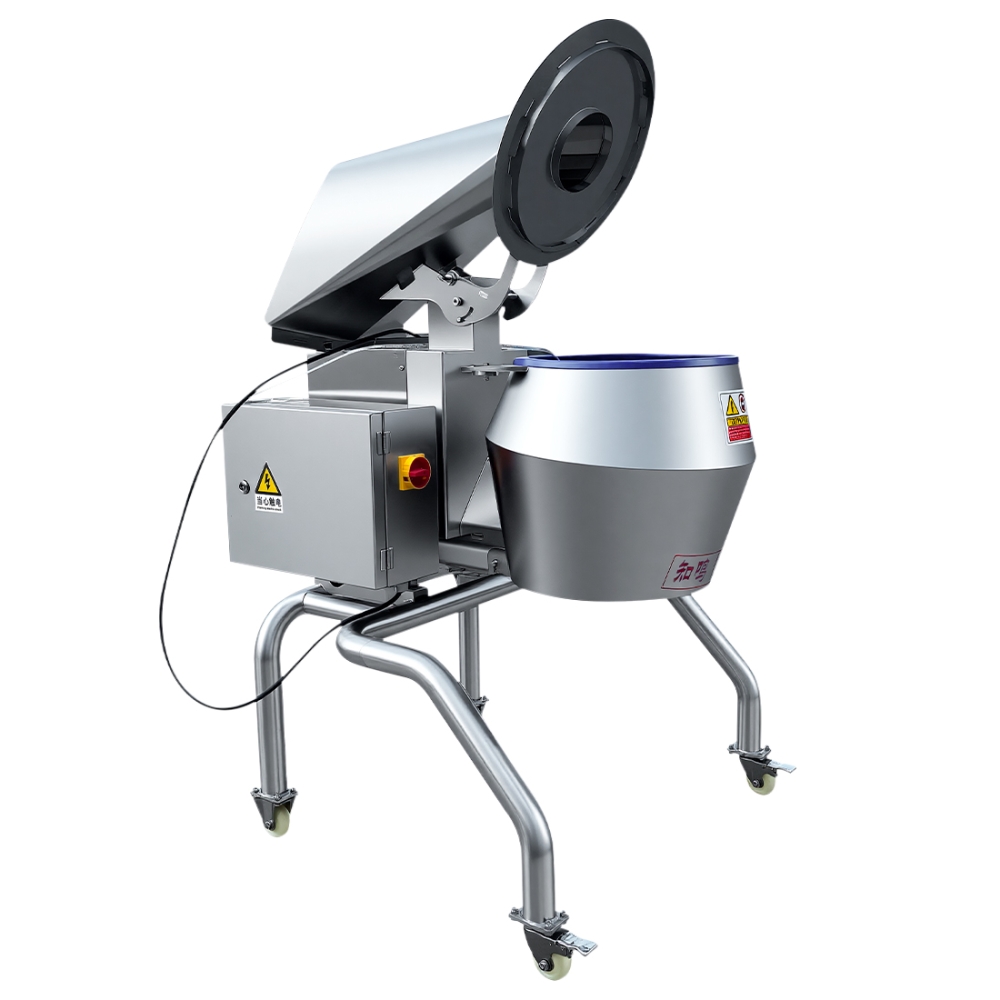

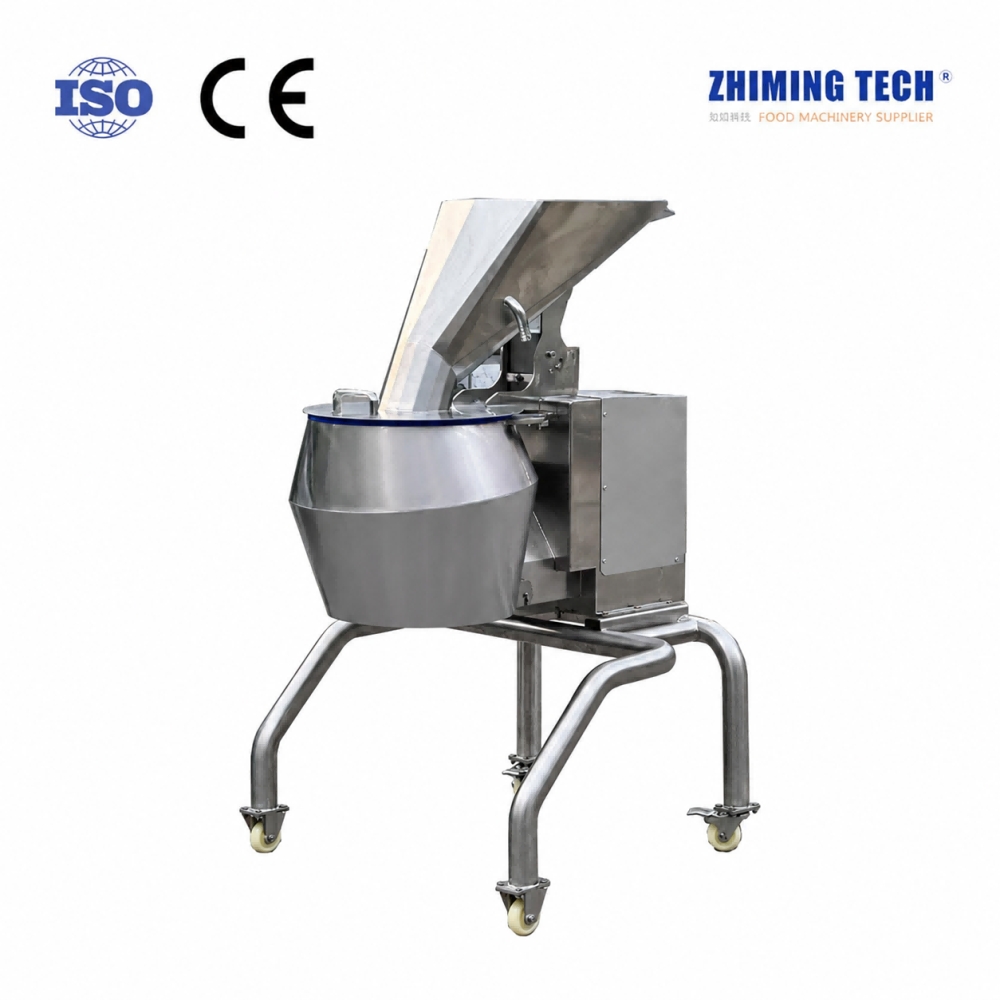

The JX-66 high-speed vegetable shredding machine is designed for industrial processing of potatoes, carrots, radishes, taro, sweet potatoes and similar root vegetables. Interchangeable cutting discs allow the machine to produce julienne strips, flat slices and crinkle-cut slices in multiple specifications. With a production capacity of up to approximately 4000 kg/h, it is suitable for vegetable factories, frozen-food plants, central kitchens and prepared-food production lines.
Key Features
Three cutting functions: produces vegetable strips, flat slices and crinkle-cut slices.
Interchangeable cutting discs: different specifications are available for diverse finished-product requirements.
High production capacity: processes up to approximately 4000 kg of vegetables per hour.
Powerful drive system: the 1.1 kW motor supports stable, continuous vegetable processing.
304 stainless-steel construction: provides corrosion resistance, durability and convenient cleaning.

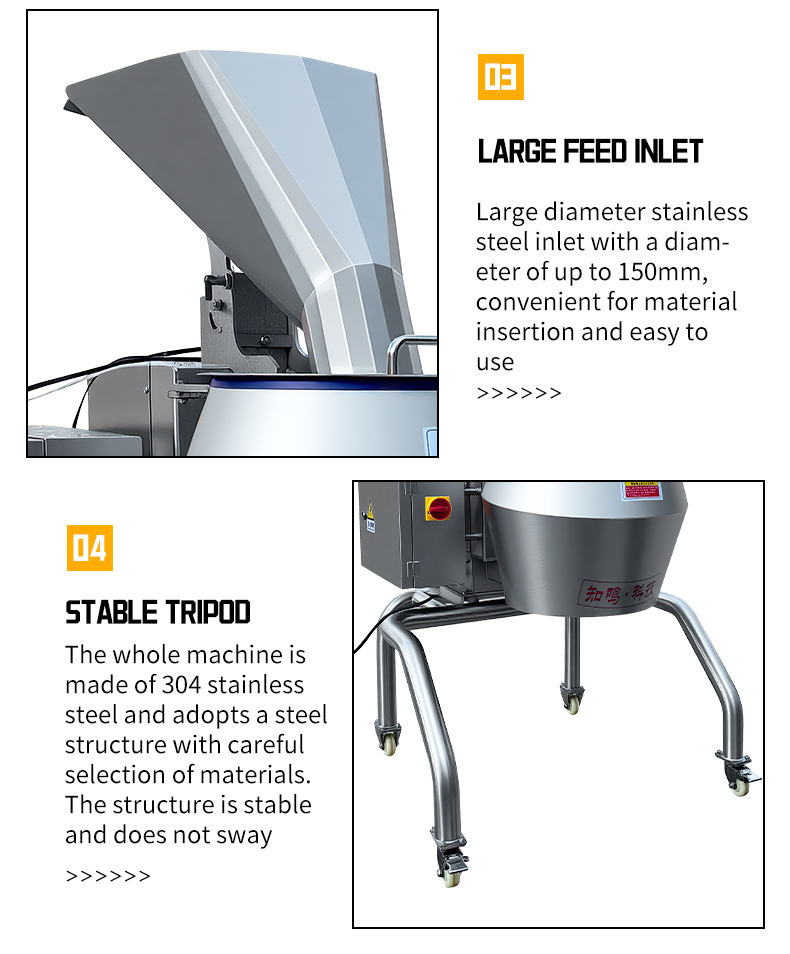

Large feeding inlet: supports efficient loading of potatoes, carrots, radishes and other root vegetables.

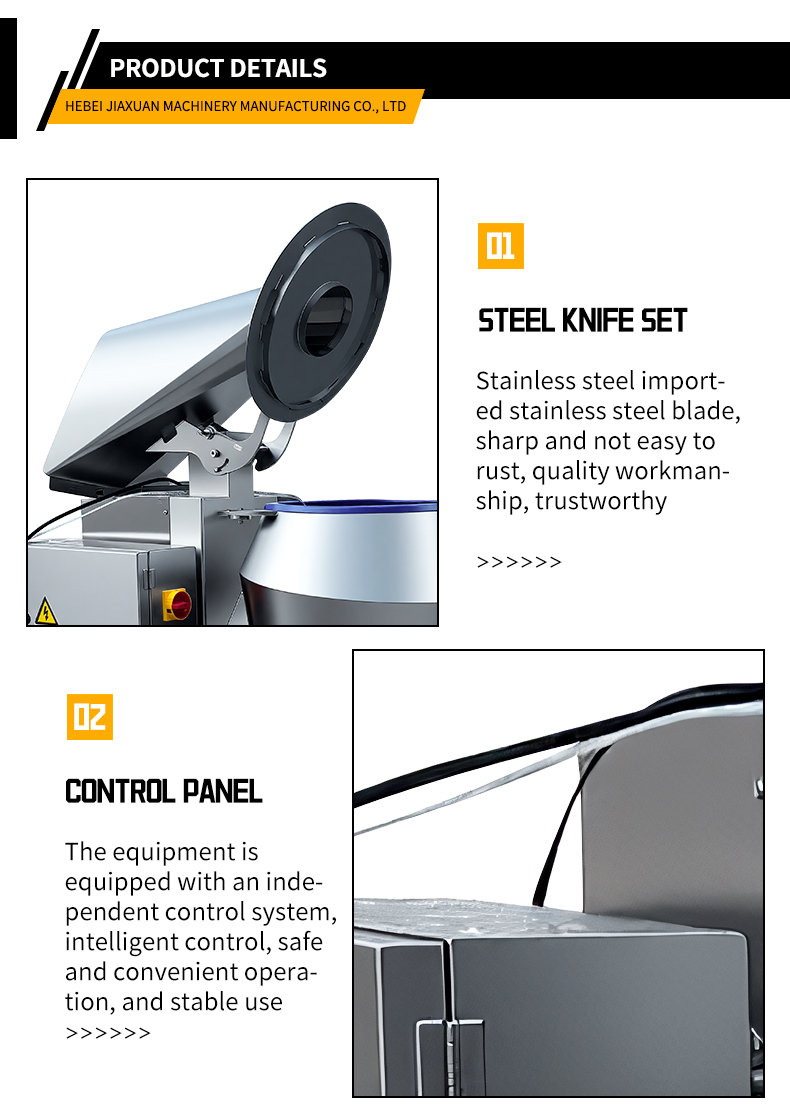

Independent control system: provides straightforward operation and an emergency-stop function.
Stable mobile frame: reinforced supports and caster wheels allow convenient movement and secure positioning.
Video of the Equipment in Operation
Watch the high-speed vegetable shredding machine produce uniform julienne strips, flat slices and crinkle-cut slices using interchangeable cutting discs.

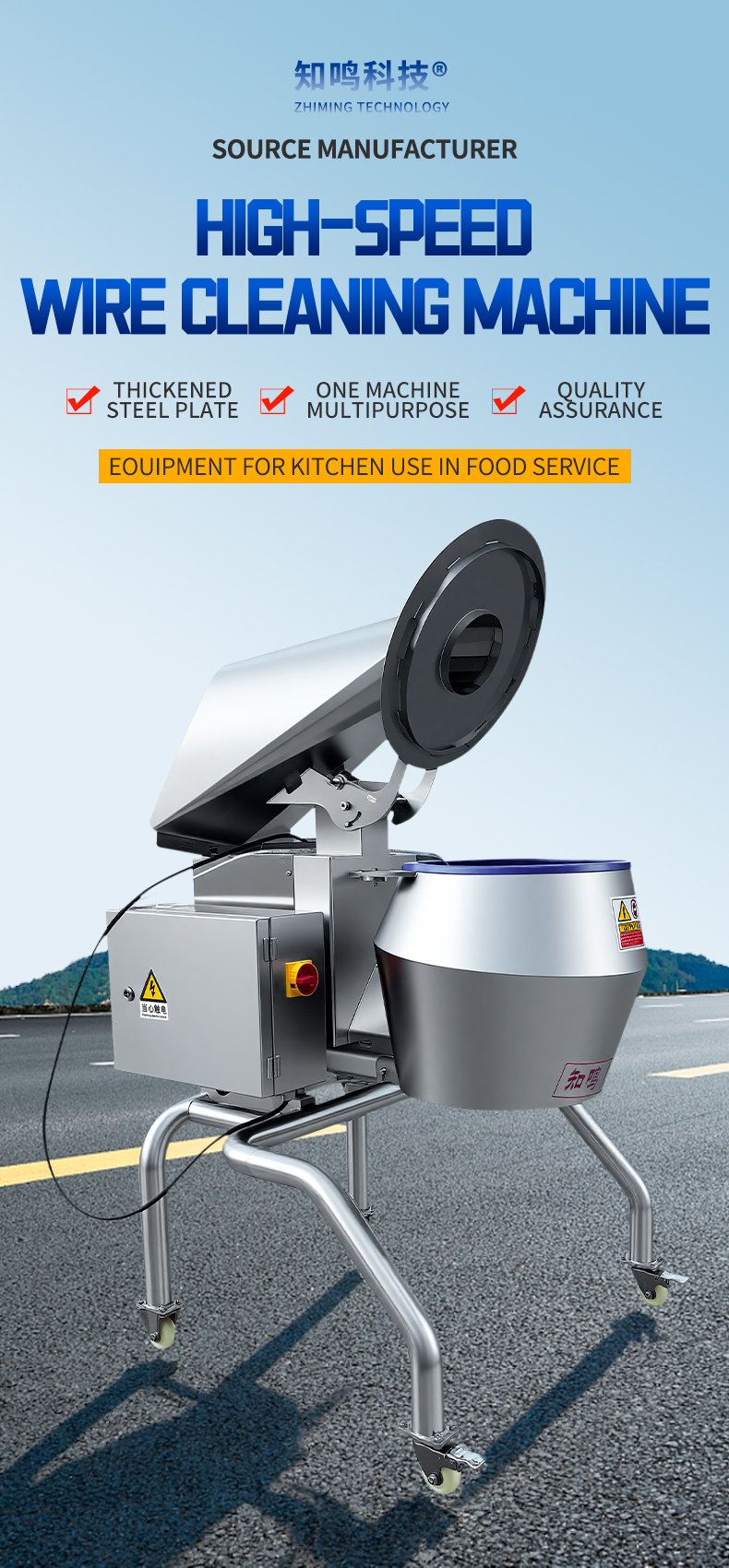

Machine Overview: Industrial Root Vegetable Grater and Julienne Cutter for High-Volume Food Processing
Suitable Products and Applications
The machine is suitable for potatoes, carrots, white radishes, green radishes, taro, sweet potatoes, mustard roots and other firm root vegetables.
Typical applications include potato processing factories, frozen vegetable plants, fresh-cut vegetable facilities, central kitchens, catering suppliers, restaurant chains and prepared-food production lines.

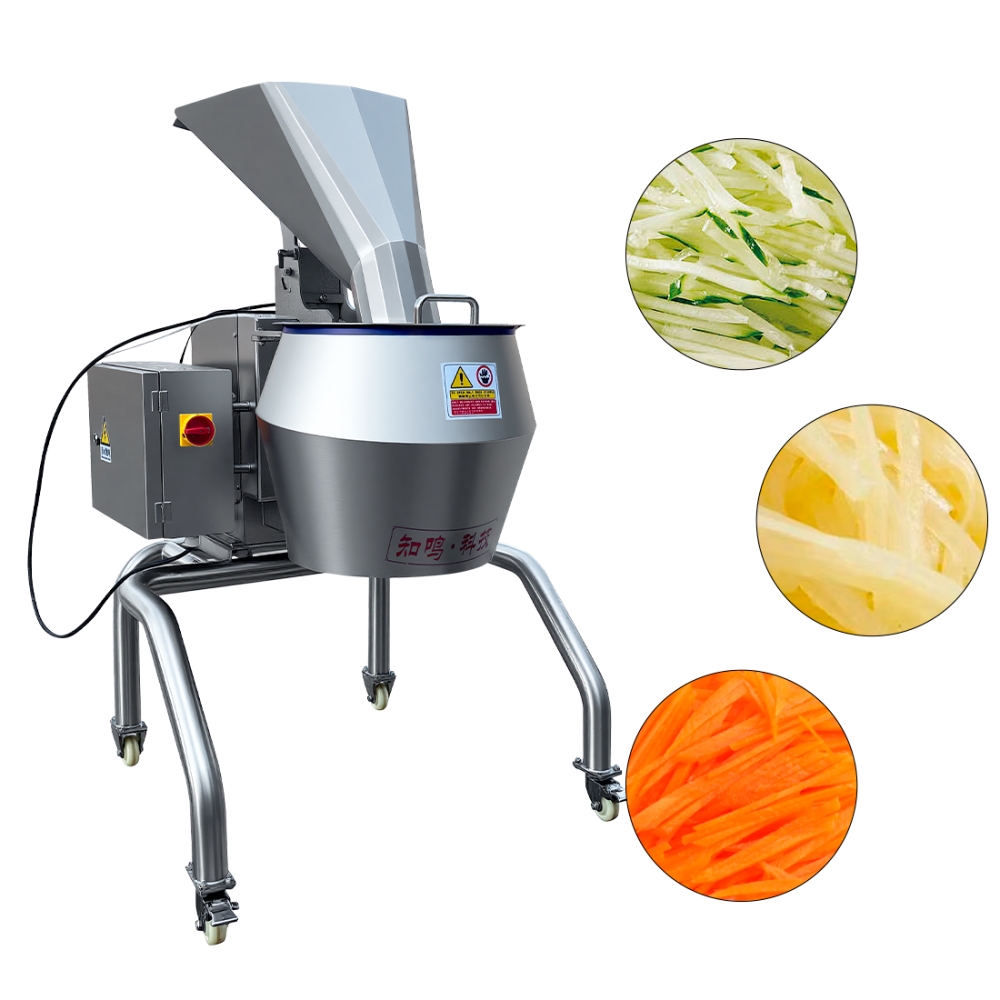

Processing Applications: Potato Shreds, Carrot Julienne, Radish Strips, Flat Slices and Crinkle-Cut Vegetables

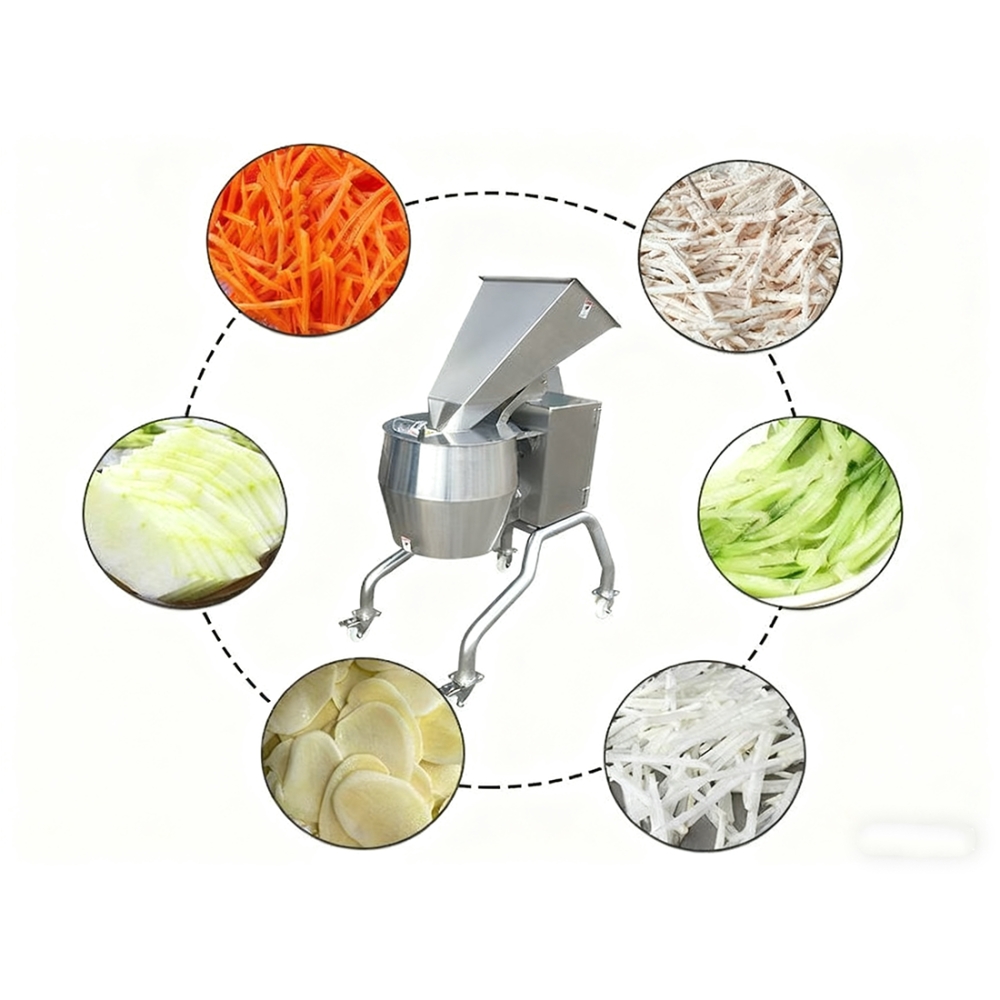

High-Speed Shredding, Slicing and Crinkle Cutting
Vegetables are loaded through the feeding inlet and guided toward the selected high-speed cutting disc. The installed disc determines the finished-product shape and dimensions. Different cutting discs allow processors to switch between julienne strips, flat slices and crinkle-cut slices while maintaining consistent results during continuous production.
Technical Specifications
| Model | JX-66 |
| Operating voltage | 380V |
| Motor power | 1100W |
| Standard feeding inlet | 100*80*80MM |
| Strip size | 2*2-7*7MM |
| Flat-slice thickness | 1.2-5MM |
| Crinkle-cut thickness | 1.2-5MM |
| Production capacity | Up to approximately 4000 kg/h |
| Machine weight | 150KG |
| Machine dimensions | 1090 × 860*1500MM |
Why Choose the JX-66 Vegetable Shredding Machine?
The JX-66 combines shredding, flat slicing and crinkle cutting in one industrial machine. Its interchangeable cutting-disc system reduces the need for multiple single-purpose cutters, while the high output helps large food processors reduce manual preparation and standardize finished-product dimensions. Factory-direct technical support and replacement cutting discs are available for long-term operation.
FAQS:
What vegetables can the JX-66 process?
It is suitable for potatoes, carrots, radishes, taro, sweet potatoes, mustard roots and other firm root vegetables.
What cutting shapes can the machine produce?
The machine can produce julienne strips, flat slices and crinkle-cut slices by changing the cutting disc.
What cutting sizes are available?
Standard options include 2 × 2 to 7 × 7 mm strips, 1.2–5 mm flat slices and 1.2–5 mm crinkle-cut slices.
What is the production capacity?
The capacity is up to approximately 4000 kg/h. Actual output depends on the vegetable type, cutting size and feeding conditions.
Can the feeding inlet and cutting discs be customized?
Yes. The standard inlet measures 100 × 80 × 80 mm, while a larger inlet may be configured for suitable materials. Cutting-disc specifications can also be selected according to the required product.
How do I request a quotation?
Please provide the vegetable type, required cutting shape and size, expected hourly capacity, destination voltage and delivery country. We will recommend the appropriate cutting discs and provide a quotation.
